Monitoring light

Monitoring light

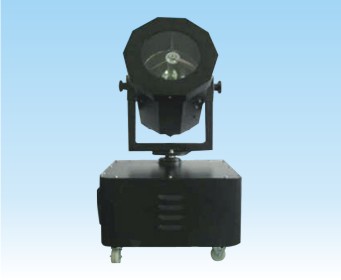

The NOYE series searchlight is a spherical high-pressure xenon light fixture. The lamp body is made of high-quality aluminum alloy, with a lightweight structure and high cost-effectiveness. The overall surface is sprayed with plastic for a long service life. The protective glass of the lamp body is made of 5mm thick tempered glass, which has strong resistance to impact.



Name: Remote searchlight

Model: N-502-1002

Voltage: 220V/240V AC50-60HZ

Power: 500-1000W

Light source: high-pressure spherical xenon lamp, color temperature 6000 ° K, service life 1200 hours

Luminous flux: 14200-35000 LM (lumens)

Dielectric strength: 1.5KV

Insulation resistance:>2MW

Beam angle: 0.6 ° -0.8 ° adjustable

Horizontal angle: 0-180 ° angle adjustable

Pitch angle: 0-40 ° adjustable

Color: White light (with a noon sun like lighting effect)

Control mode: automatic single machine mode

Focusing range: 0.005-1 kilometer stepless adjustment

Projection distance: visible within 1 kilometer range

Protection function: IP65

Net weight: 30kg

Safety standard: in accordance with GB7000.1-2002

External dimensions: L * W * H 500 * 500 * 900MM

Packaging size: L * W * H 570 * 570 * 930MM

Application: Can be used for creating large aerial scenes along squares, parks, prisons, watchtowers, high-rise buildings, urban lighting, and rivers
