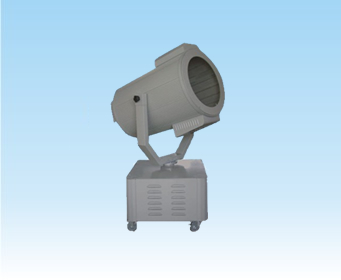

The NOYE series searchlight is a spherical high-pressure xenon light fixture. The lamp body is made of high-quality aluminum alloy, which has strong corrosion resistance, lightweight structure, and high cost-effectiveness. The overall surface is sprayed with plastic for a long service life. The protective glass of the lamp body is made of 5mm thick tempered glass, which has strong resistance to impact.

Model: N-6000-10000

Name: Remote searchlight

Voltage: 220V/380V AC50HZ

Power: 6000-10000W

Light source: high-pressure spherical xenon lamp, color temperature 6000 ° K, service life 1000 hours

Luminous flux: 250000 – 480000 LM (lumens)

Dielectric strength: 1.5KV

Insulation resistance:>2MW

Beam angle: 0.6-0.8 ° adjustable

Color: White, Red, Yellow, Blue, Green, Purple, any choice

Control mode: automatic single machine mode

Focusing range: 0.005-10 km stepless adjustment

Projection distance: visible within a range of 10 kilometers

Horizontal angle: 0-180 ° angle adjustable

Pitch angle: 0-40 ° adjustable

Protection function: IP65

Gross weight: 95-110kg

Safety standard: in accordance with GB7000.1-2002

External dimensions: length * width * height 85 * 75 * 125CM

Packaging size: length * width * height 90 * 80 * 130CM

Application: Can be used for creating large aerial scenes along squares, parks, high-rise buildings, urban lighting, and rivers

Note: A split type can be customized according to customer requirements for simulating sunlight in the laboratory.
